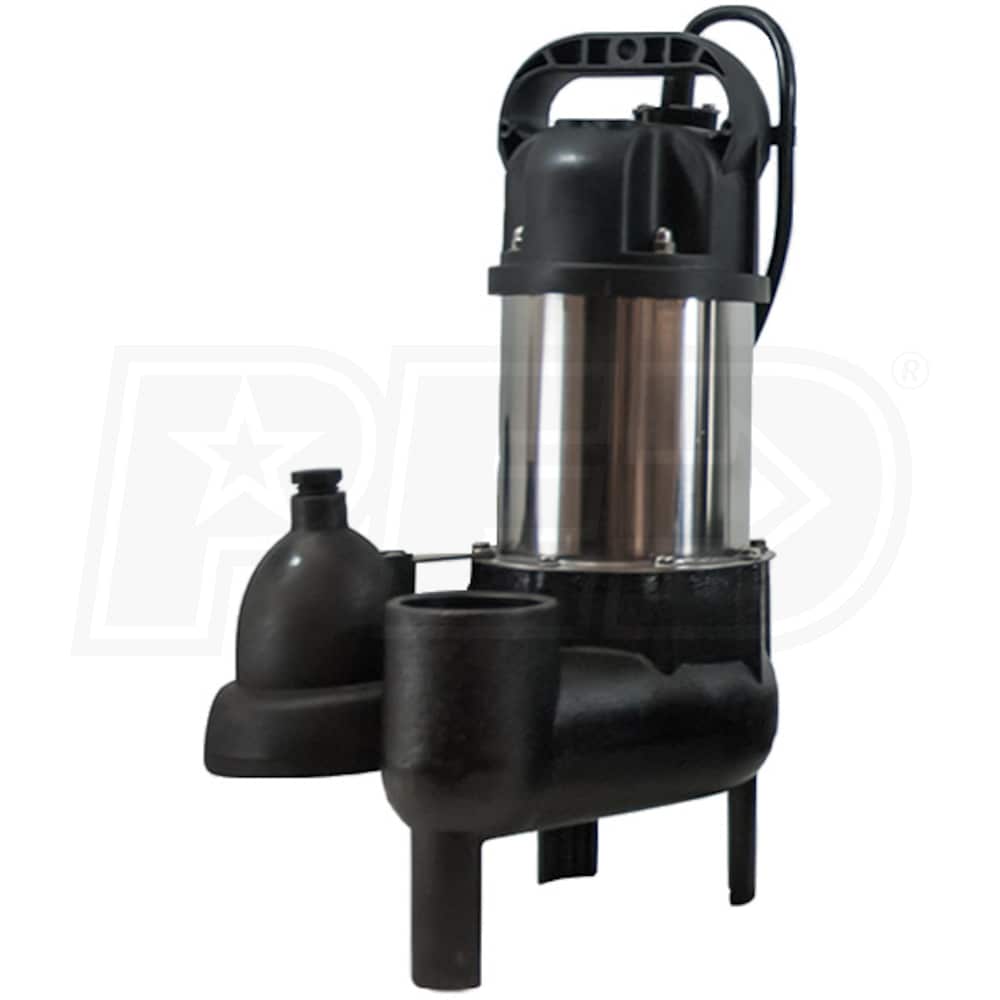

iON SHV40I - 1/2 HP Stainless Steel Residential Sewage Pump (2") w/ ION Digital Level Control MHP20160
Model: SHV40i
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
5400
Gallons
Switch Type

Style
Sewage Pump
GPH
5400 Gallons
Switch Type
Ion
Features
Features
- Automatic Submersible Sewage Pump
- Designed for residential and light commercial applications
- Stainless Steel Construction
- Min Basin Size 18" X 30"
- ION Digital Level Control (8.5" On/Off Diff.)
- First of a kind solid-state sensing technology w/ no moving parts
- 1/2 HP Thermally Protected Motor
- Oil-filled design, prevents overheating to extend pump life
- Cast Iron Vortex Style Impeller
- Easily pass solids up to 2-inches in diameter
- Stainless Steel Rotor Shaft w/ Carbon Ceramic Seal
- With permanently lubricated ball bearings for extended pump life
- Poly Resin Top Cap and Handle
- Made for easy installation and maintenance
- Piggyback Pump and Switch Cord Assembly
- Made for easy serviceability
- 20-Foot Power Cord
- Great for outdoor applications
- 3-Year Warranty
- *Note - (IN-SPB1-1) Required For Mounting Sensor On Pipe
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
16
Pump
Housing Material
Stainless Steel
Solids Handling Size
2 inch
Float Type
Ion Sensor
GPH @ 0 feet
5400
GPH @ 5 feet
4920
GPH @ 10 feet
4200
GPH @ 15 feet
3000
GPH @ 20 feet
1800
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Based on "On" Level
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
31 Pounds
Consumer Warranty
3 Years
Product Length
9.125 Inches
Product Width
5.5 Inches
Product Height
16 Inches
Additional Model Numbers
SHV40I-11, SHV40i
Style

GPH
5400
Gallons
Switch Type

Style
Sewage Pump
GPH
5400 Gallons
Switch Type
Ion
Features
Features
- Automatic Submersible Sewage Pump
- Designed for residential and light commercial applications
- Stainless Steel Construction
- Min Basin Size 18" X 30"
- ION Digital Level Control (8.5" On/Off Diff.)
- First of a kind solid-state sensing technology w/ no moving parts
- 1/2 HP Thermally Protected Motor
- Oil-filled design, prevents overheating to extend pump life
- Cast Iron Vortex Style Impeller
- Easily pass solids up to 2-inches in diameter
- Stainless Steel Rotor Shaft w/ Carbon Ceramic Seal
- With permanently lubricated ball bearings for extended pump life
- Poly Resin Top Cap and Handle
- Made for easy installation and maintenance
- Piggyback Pump and Switch Cord Assembly
- Made for easy serviceability
- 20-Foot Power Cord
- Great for outdoor applications
- 3-Year Warranty
- *Note - (IN-SPB1-1) Required For Mounting Sensor On Pipe
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
16
Pump
Housing Material
Stainless Steel
Solids Handling Size
2 inch
Float Type
Ion Sensor
GPH @ 0 feet
5400
GPH @ 5 feet
4920
GPH @ 10 feet
4200
GPH @ 15 feet
3000
GPH @ 20 feet
1800
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Based on "On" Level
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
31 Pounds
Consumer Warranty
3 Years
Product Length
9.125 Inches
Product Width
5.5 Inches
Product Height
16 Inches
Additional Model Numbers
SHV40I-11, SHV40i
Product Specs
+−
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
16
Pump
Housing Material
Stainless Steel
Solids Handling Size
2 inch
Float Type
Ion Sensor
GPH @ 0 feet
5400
GPH @ 5 feet
4920
GPH @ 10 feet
4200
GPH @ 15 feet
3000
GPH @ 20 feet
1800
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Based on "On" Level
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
31 Pounds
Consumer Warranty
3 Years
Product Length
9.125 Inches
Product Width
5.5 Inches
Product Height
16 Inches
Additional Model Numbers
SHV40I-11, SHV40i
